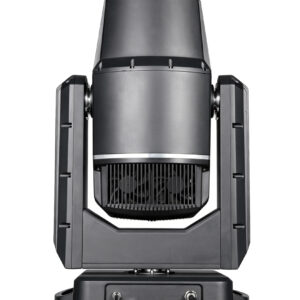

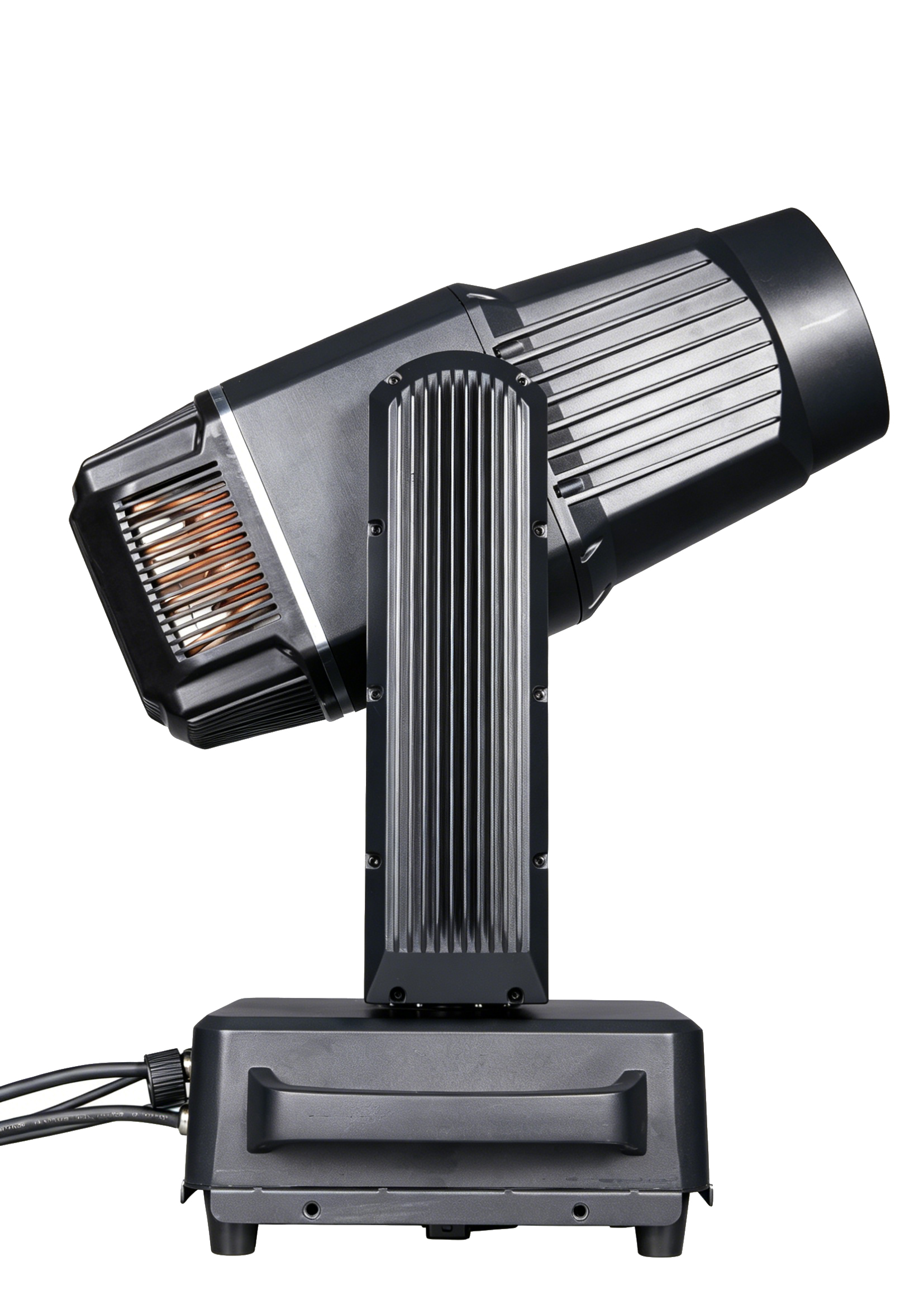

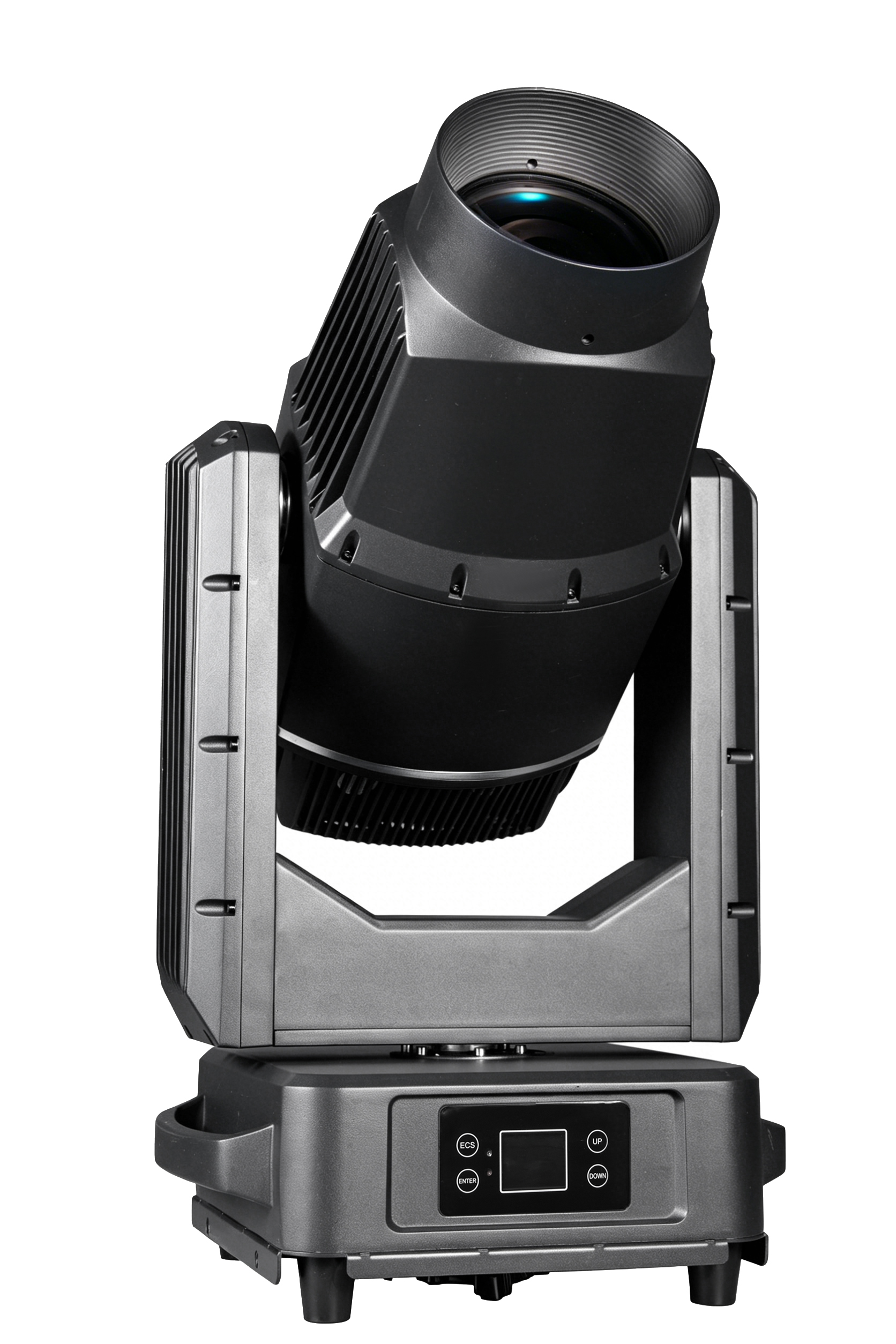

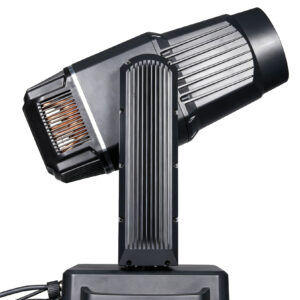

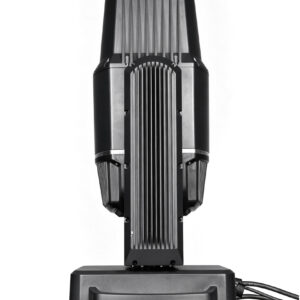

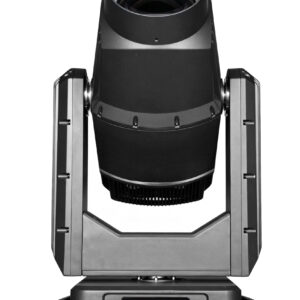

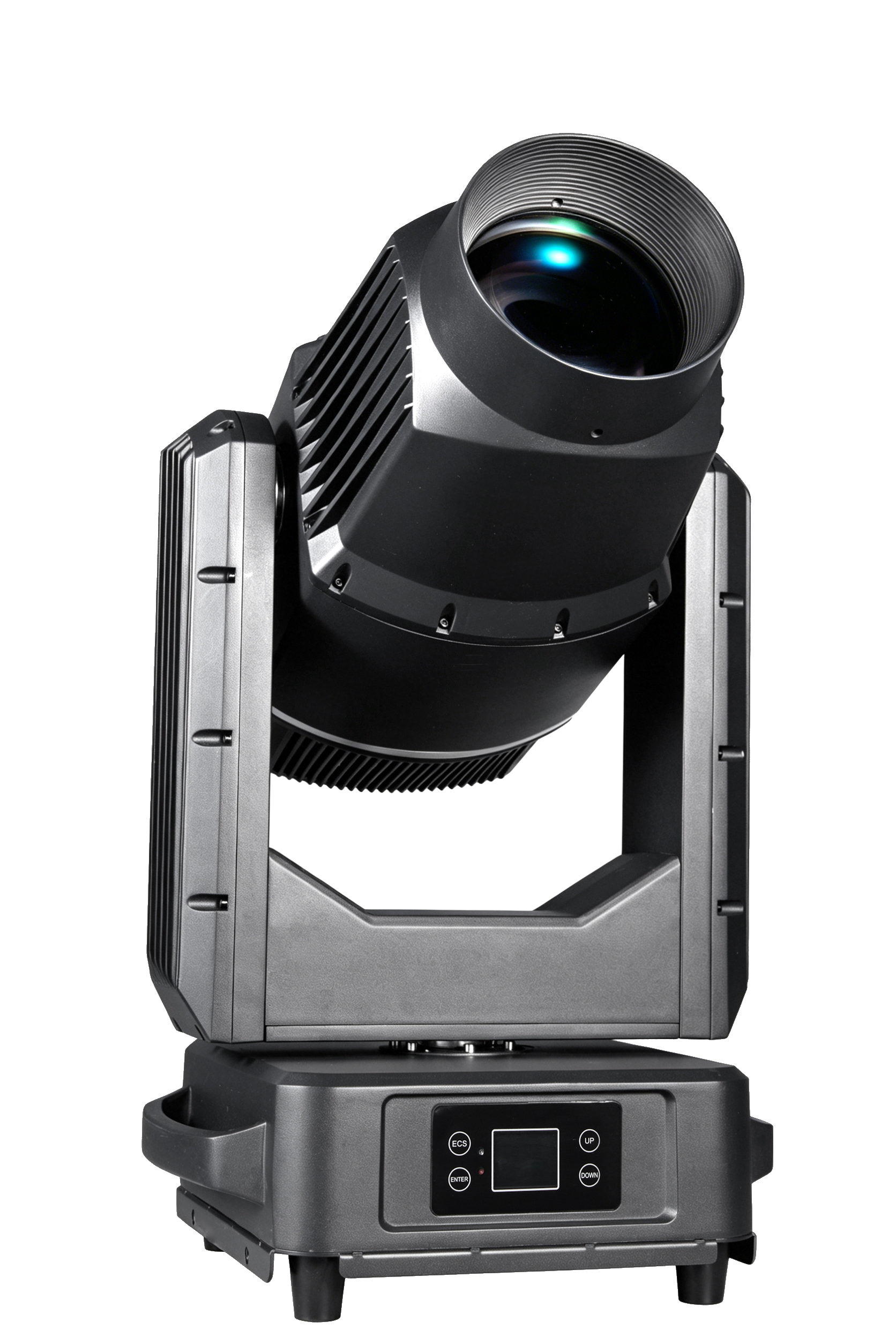

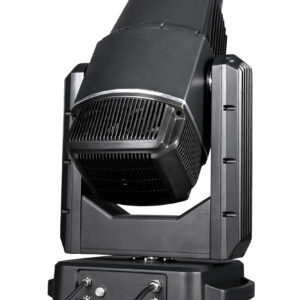

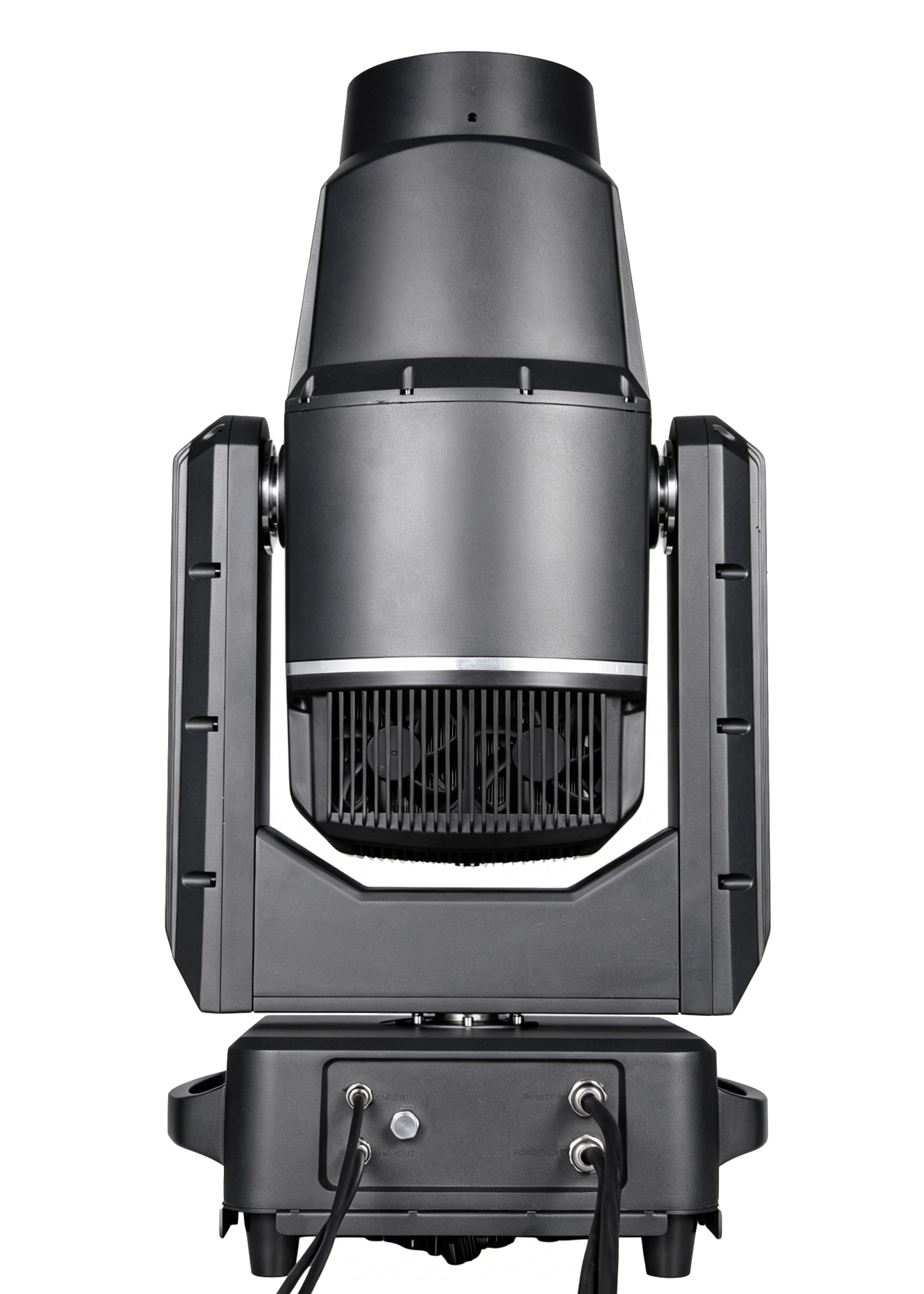

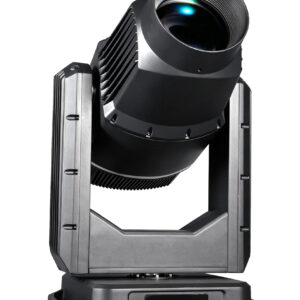

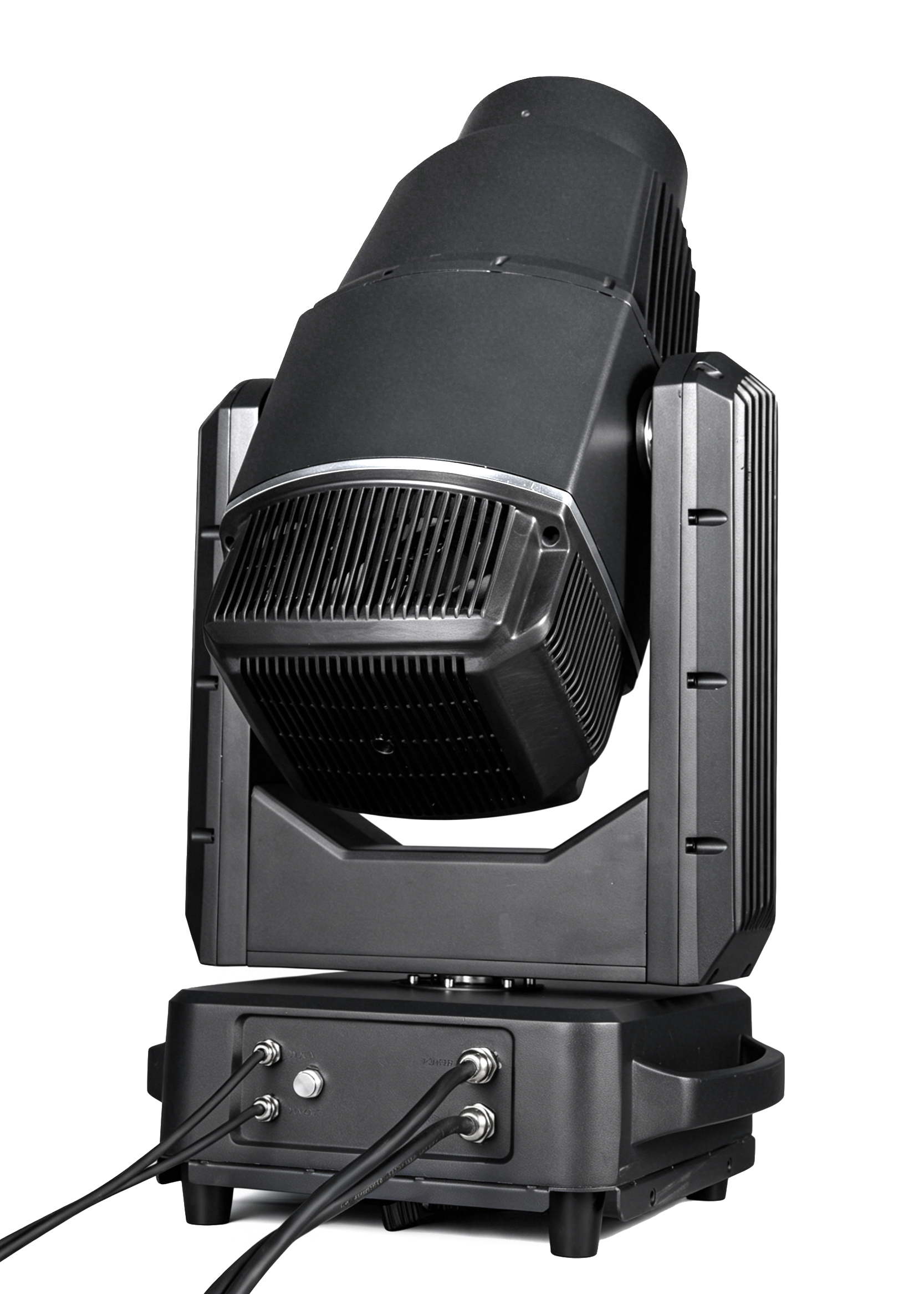

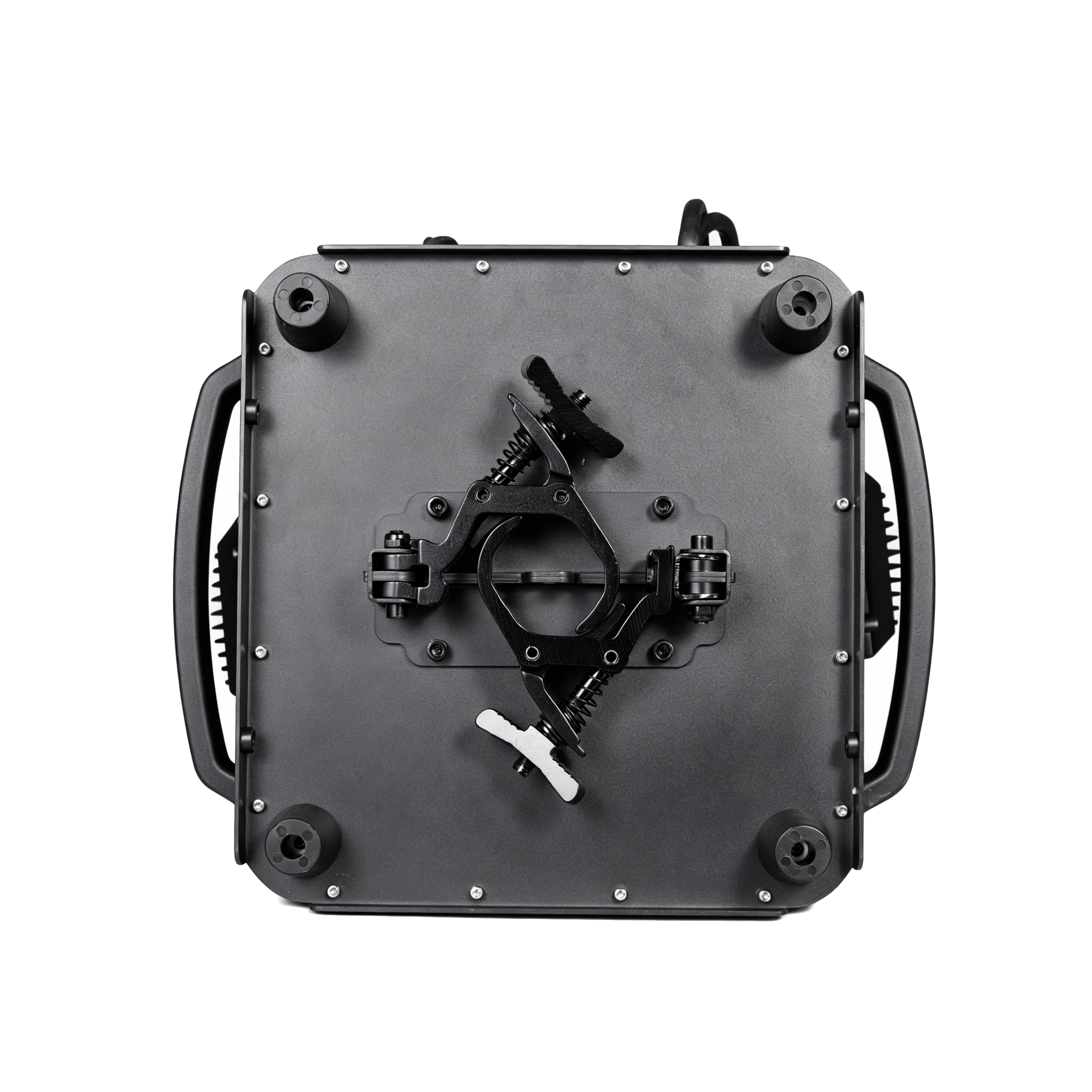

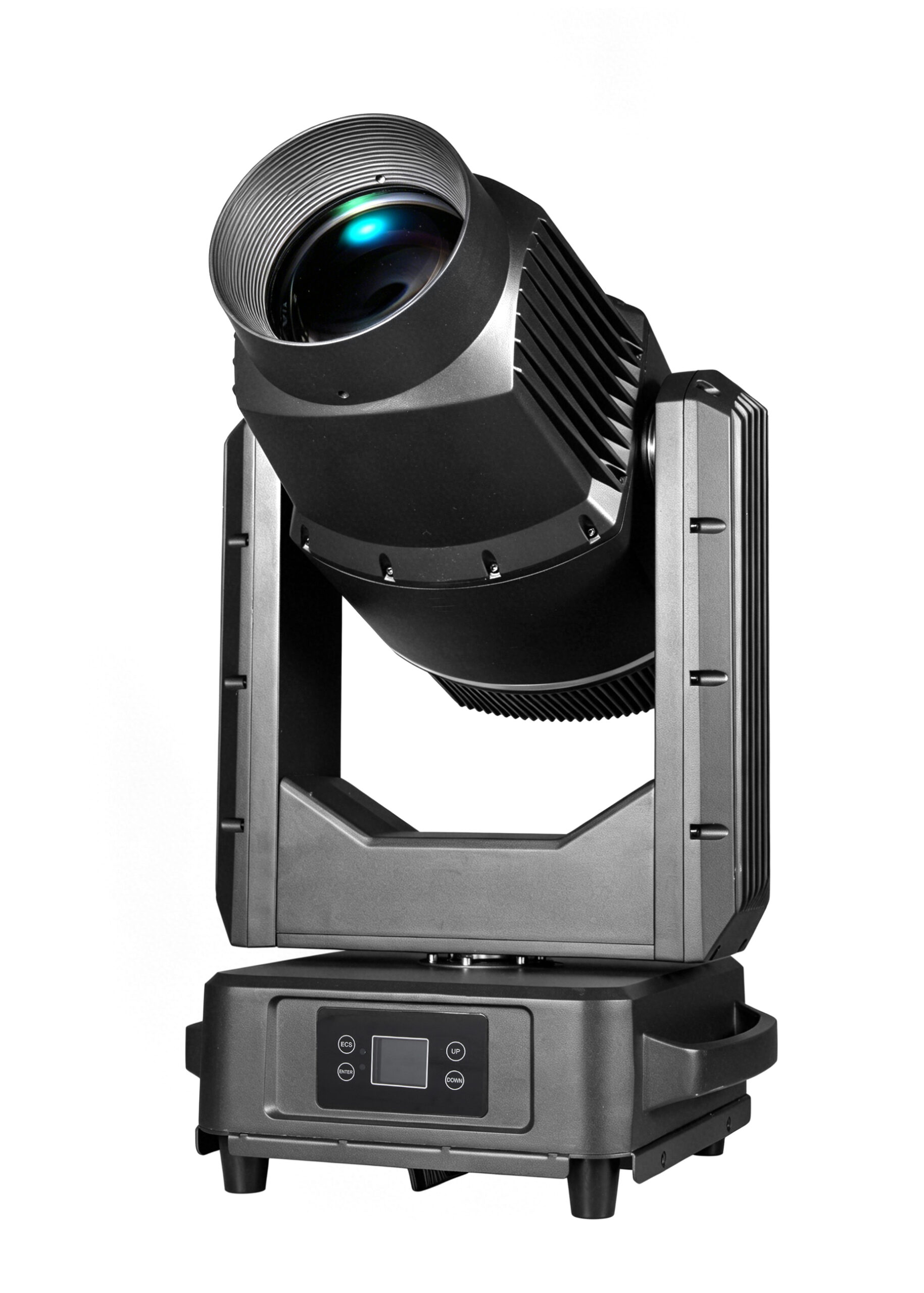

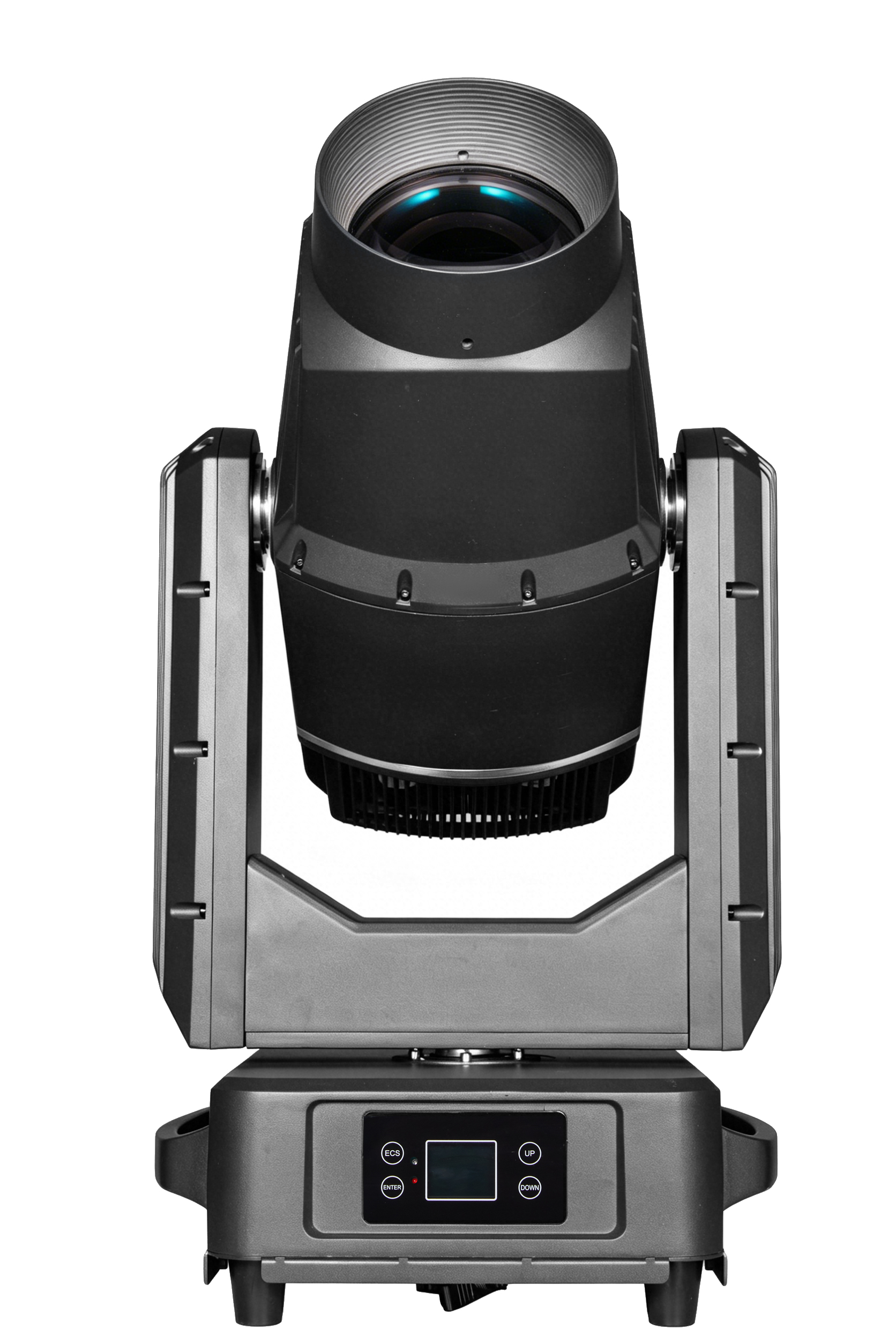

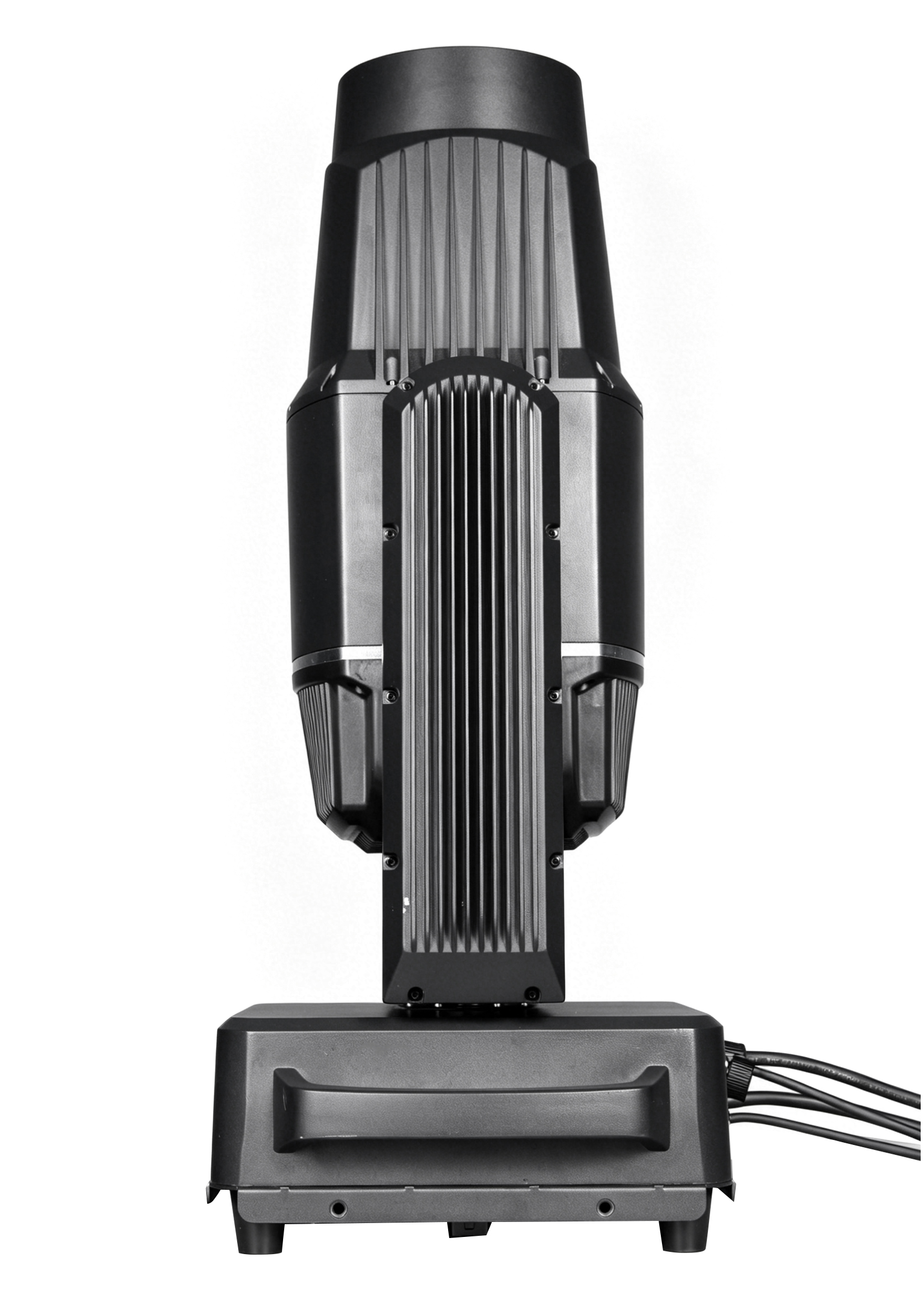

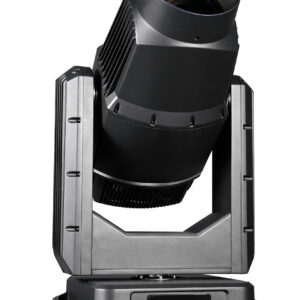

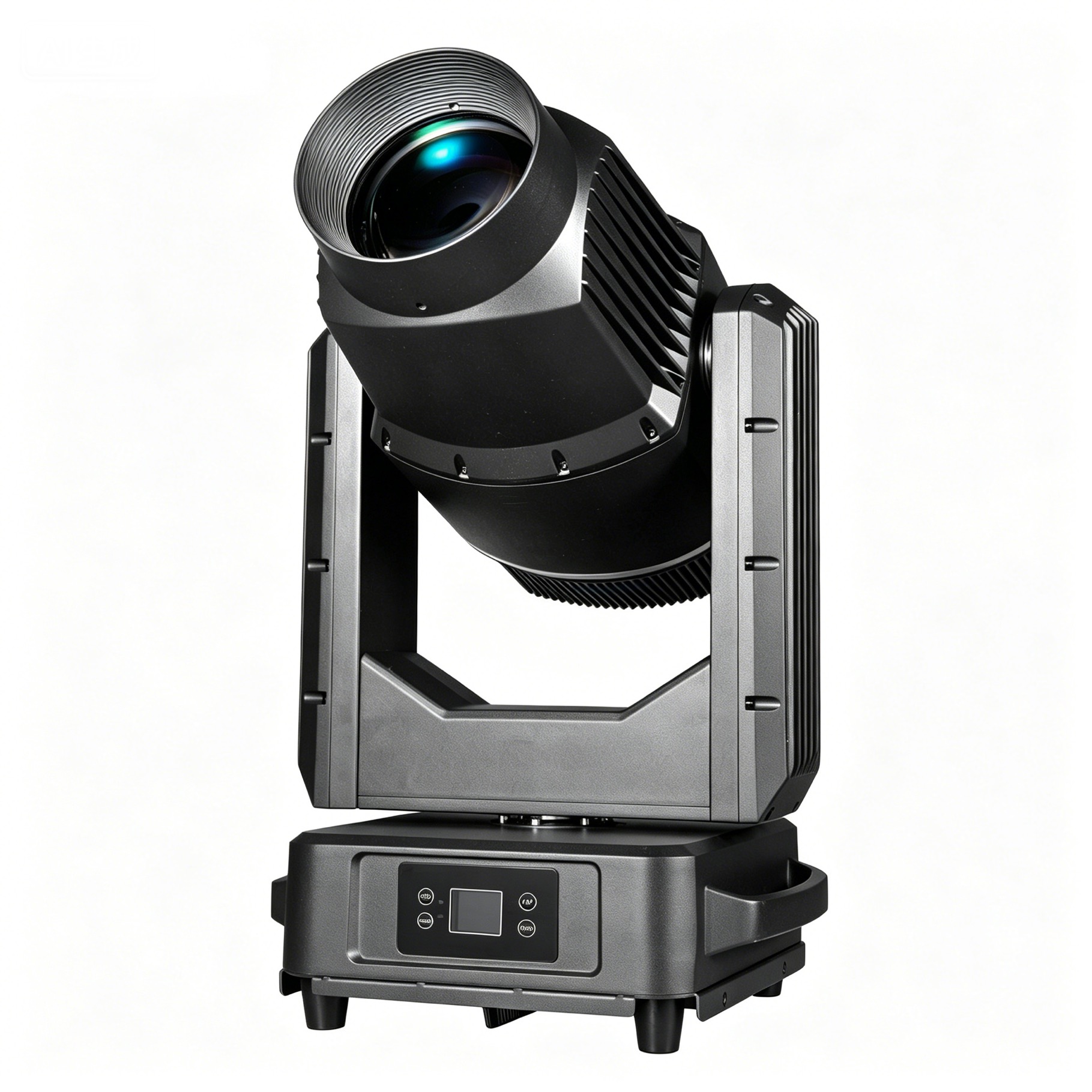

600W/800W Waterproof Profile Moving Head Light

Product Specifications:：
￭ Optical System
– Light Source: 800W White LED Module
– Color Temperature: 7500K (customizable)
– Light Source Life: >30,000 hours
– Lens: Effective diameter of output lens 148mm

￭ Pan & Tilt
– Pan: 540° (8/16bit precision scanning)
– Tilt: 270° (8/16bit precision scanning)
– Auto error-correction reset function

￭ Display System
– 1.77-inch LCD display, 4 touch buttons for function control
– Display rotatable 180°, with screen-off/lock function, Chinese/English language switching

￭ Color System
– CMY + CTO: Dual-plate louver-type uniform and smooth CMY + CTO color mixing system
– 1 color wheel: 6 colors + white, with half-color effect, bi-directional rotating rainbow effect

￭ Gobo System
– 1 fixed gobo wheel: 9 gobos + white, with gobo shake function
– 1 rotating gobo wheel: 6 interchangeable rotating gobos + white, bi-directional rotation, with gobo shake function, speed adjustable

￭ Framing System
– A set of 4 framing shutters for controllable beam shaping, the entire framing unit can be rotated 90°

￭ Zoom System
– Linear electronic focus, smooth adjustment
– Zoom range: 3° – 40°, smooth and quiet linear motor-driven zoom

￭ Effects
– Prism: 3-facet prism with bi-directional rotation function
– Frost: Gradual frost system
– Dynamic effect wheel: Independent dynamic effect wheel with 360° bi-directional rotation

￭ Dimming & Strobe
– Dimming: 0–100% linear dimming
– Strobe: Up to 25Hz, random strobe selectable, speed controllable

￭ Applications
– Suitable for any extreme outdoor environments such as fountain shows, theme parks, water performances, seaside performances, and various large/medium/small outdoor events and fixed installation landscape lighting projects.

￭ Ingress Protection
– IP66

￭ Control
– 35/44-channel control modes, standard DMX512 protocol, RDM control

￭ Electrical Parameters
– Power Supply: AC100–240V, 50/60Hz
– Total Power Consumption: 1100W

￭ Dimensions & Weight
– Product Dimensions: 390mm x 320mm x 768mm
– Packing Dimensions (carton): 500mm x 470mm x 900mm
– Net Weight: 29.5 kg
– Gross Weight (carton): 32 kg
